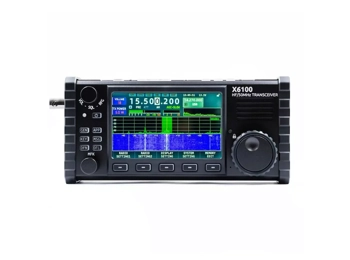

XIEGU X6100 - Ultra-Portable Shortwave Transceiver

XIEGU X6100 - Ultra-Portable Shortwave Transceiver Radio
X6100 is an ultra-portable shortwave transceiver. It adopts the SDR software radio platform architecture of excellent performance, which carries powerful baseband and RF unit, integrating rich and diversified operating functions, bringing you a brand-new recognition and experience on amateur radio. With its compact structure and tiny appearance, you can immediately set forth on a journey with it, get close to nature and enjoy the fun of outdoor communication.


Features:

SDR Structure
HF/50MHz Full Mode (supporting data communication)
Transmitting Power: External power supply: 10W | Battery power supply: 5W
4" High-resolution Colour Screen, 800*480
Built-in 3000mAh Lithium Battery
Built-in Automatic Antenna Tuner
Integrated SWR Scanner and Voice Call
Integrated Modem, Pre-set message, CW Automatic Call
Built-in Bluetooth/Wi-Fi function, enable wireless audio/keyboard/mouse operation
Integrated USB control/transmission, supports USB HOST
Built-in high-stability TCXO internal clock source
Technical Specifications:

Frequency Range (Receiving): 0.5MHz~30MHz, 50MHz~54MHz
Frequency Range (Transmitting): 1.8～2.0MHz | 3.5～4.0MHz | 5.3515~5.3665MHz | 7.0～7.3MHz | 10.1～10.15MHz | 14.0～14.35MHz | 18.068～18.168MHz | 21.0～21.45MHz | 24.89～24.99MHz | 28.0～29.7MHz | 50.00～53.99MHz
Operation Mode: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)
Minimum Frequency Step: 10Hz
External Power Supply Voltage: DC 9.0V~15.0V, negative ground
Frequency Stability: ±1ppm (20 minutes after start)
Antenna Port Impedance: 50Ω
Antenna Interface Type: BNC
Operating Temperature: 0℃～+55℃
Transmission power: External power supply: 10W | Battery power supply: 5W
Current consumption: Standby: 330mA (Max) | Transmit: 3A (Max)
Approx. Dimensions: 180mm x 86mm x 49mm
Transmitter Specifications:

Output Power, internal battery: 5W
Output Power, external power supply: 10W
Stray suppression ≥ 60dB
Sideband suppression: ≥50dB
SSB Frequency Response: 300-2700Hz (-6dB)
FM Modulation Swing; +/- 5kHz
Mic Impedance: o,2-10k (600 Ohm typical)
Antenna tuner tuning impedance range: 12.5-200 Ohm
Antenna tuner initial tuning time: ≥ 10s
Antenna tuner memory recall time ≥ 0.1s
Receiver Specifications:

Circuit Type: ZIF
Sideband Suppression: ≥50dB
MDS: -138dB
0.5～1.79999MHz: 10uV (AM)
1.8～1.99999MHz: 0.35uV (SSB/CW) | 10uV (AM)
2.0～27.9999MHz: 0.20uV (SSB/CW) | 2uV (AM)
28.0～30.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)
50.0 ~ 54.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)
Antenna Specifications:

Antenna Tuner
VSWR: 1:5.0
Antenna tuner initial tuning time: ≤15s
Antenna tuner tuning read time: ≤0.2s

---
