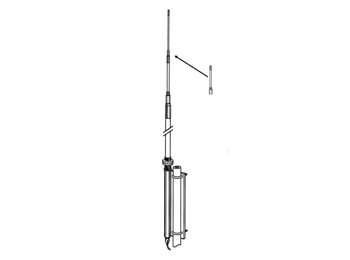

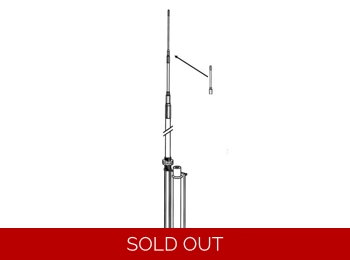

Solarcon Max Optimizer - 10-11 Metre Base Station Antenna
Product Code: MKR11-610
Rating: Be the first to write a review
Brand: SOLARCON
Product Condition: New
The Ultimate Optimizable 10-11 Meter Base Station Antenna. 5000 Watt Rated *New* Upgraded replacement for the IMAX-2000.
The MaxOptimizer allows you to choose between a balanced 10–11 meter antenna that will perform well in both bands or optimize the antenna for the 11 meter band.
To Optimize for 11-meter performance assemble the antenna with the 12” optimizer section installed between the mid and top section as a 4-piece antenna. For balanced 10-11 meter performance leave out the 12” optimizer section and assemble as 3 piece antenna.
Features / Specification
Power Handling: 5000 Watts
Covers 26 MHz to 33.5 MHz using patented tuning rings and trimming the top section; approximately twice the 2:1 SWR bandwidth as the A-99 / I-MAX 2000 (3MHz with SWR<2:1)
Entire antenna radiates producing a gain 1 to 2db higher than the best of the competitors 5/8 wavelength antennas
Antenna tested to 5000 watts without failure
Mounting system provides easy one-piece installation
Long ferrules make for a mechanically strong antenna
Comes in three 3-4 sections
Meets or exceeds CPSC shock hazard standards
Add the MAX GPK ground plane kit for even better performance
Packaged box length: 243cm
The MaxOptimizer allows you to choose between a balanced 10–11 meter antenna that will perform well in both bands or optimize the antenna for the 11 meter band.
To Optimize for 11-meter performance assemble the antenna with the 12” optimizer section installed between the mid and top section as a 4-piece antenna. For balanced 10-11 meter performance leave out the 12” optimizer section and assemble as 3 piece antenna.
Features / Specification
Power Handling: 5000 Watts
Covers 26 MHz to 33.5 MHz using patented tuning rings and trimming the top section; approximately twice the 2:1 SWR bandwidth as the A-99 / I-MAX 2000 (3MHz with SWR<2:1)
Entire antenna radiates producing a gain 1 to 2db higher than the best of the competitors 5/8 wavelength antennas
Antenna tested to 5000 watts without failure
Mounting system provides easy one-piece installation
Long ferrules make for a mechanically strong antenna
Comes in three 3-4 sections
Meets or exceeds CPSC shock hazard standards
Add the MAX GPK ground plane kit for even better performance
Packaged box length: 243cm
