RM KL503HD - 25-30MHz (300W) Linear Amplifier With Preamplifier WITH PWR LEAD
Product Code: MKR23-218
Rating: Be the first to write a review
Brand: RM
Product Condition: New

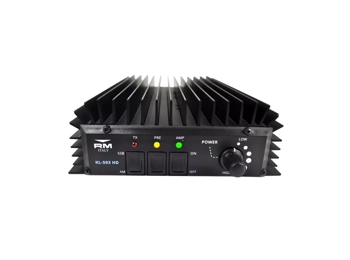

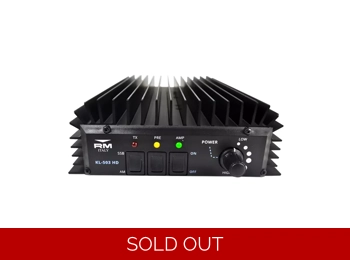

RM KL503HD - 25-30MHz (300W) Linear Amplifier With Preamplifier
The KL503HD is a 12V linear amplifier for use in the frequency range 25–30MHz, with a drive power of 1 to 35 W in all modes. The KL 503 HD features a six-position power selector via a a front panel knob and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel.
THIS AMPLIFIER COMES WITH THE RM 6mm POWER LEAD
Technical Specifications:
Operation Frequency: 25-30 MHz (10m Amateur HF Band)
Modulation Types: SSB, CW, AM, FM, data etc (All narrowband modes)
Transistor: 8x RM3 Mosfet + 1x RM4 Mosfet Driver
Max I/P Current: 30 Ampere
Power Supply: 13 VDC +/- 1V 40A
Input Fuse (Internal): 3x 10 Ampere (5x20 mm Fast)
Input RF Power: 1-35 Watt max (All modes)
Output RF Power: 300 Watt max
Maximum bypass power (Amplifier off): 50 Watt max
Input VSWR: 1.1 – 1.5:1
Output VSWR Maximum: 2.5:1
Harmonic Output: >-50dBc 25-30 MHz
Dimensions: 170mm x 295mm x 62mm
RM Silicon DC 6mm Power Cable
This kit contains 3 meters of 6mm silicon cable, eyelets and fork terminals to make a DC power cable
If the wiring is going to be connected to a battery, we recommend using the eyelet terminals, while on a power supply it might be more convenient to use the fork terminals
At the ends of the cale, strip the insulation 5-7mm and insert the stripped part inside the terminal and crimp. For the best connection. a suitable crimping tool should be used, inserting the terminal into the pliers utilising the correct former for the terminal size
For RM products the power connector is included and does not require the terminal, it will be enough to strip back the insulation 7-10mm. The cable can then be inserted into the appropriate part of the RM connector and blocked by tightening the screw
