PNI ML100 antenna, 100cm, 26-30MHz, With125mm Magmount
Product Code: PNI-ML100
Rating: Be the first to write a review
Brand: PNI
Product Condition: New
CB PNI ML100 antenna, length 100cm, 26-30MHz, 250W, 125mm magmount
One of the best performing antennas at PNI, the ML100 is dedicated to passenger cars and utility vehicles.
High performance CB PNI ML100 antennaThe performance of the product is closely related to the technical characteristics that the antenna has under ideal conditions of installation and use: SWR <= 1.0, maximum power applied 250 W continuously, impedance 50 Ohms, stainless steel etc. |
|
Distance of communicationCommunication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 12 km is reached under ideal working conditions: calibrated antenna, open field without obstacles, the station with maximum legal power allowed by 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. |
|
|
|
Antenna lengthAntenna length is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. PNI antenna ML100 has a length of 110 cm (magnetic base included). |
Magnetic baseThe magnetic base 120 / PL in the package is provided with a cable of 4 m, sufficient to place the antenna on the dome, has a diameter of 125 mm and a strong magnet that offers the antenna stability even at high speeds. |
|

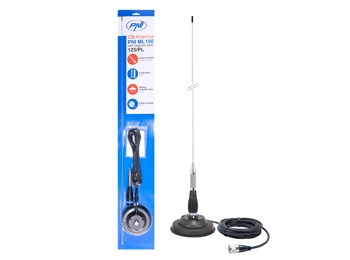

Full packageThis kit is ready for mounting having in the package: antenna, magnetic base with cable and PL259 socket, calibration plug. All you have to do is mount the antenna on a magnetic basis, connect it to a CB radio station and calibrate it for maximum performance. |
| Product identification | |
| Product code | PNI-ML100 |
| Tape | CB |
| Product color (spike) | Silver |
| General characteristics | |
| Working frequency | 26 - 28 Mhz |
| Number of channels | 90 |
| Maximum applied power | 250W |
| Minimum SWR in the center of the band | 1.0 |
| Length | 100 cm (110 cm with base included) |
| impedance | 50 Ohm |
| Material | Stainless steel |
| Tip connector | PL259 |
| Hole diameter (mm) | 16 mm |
| Cable length | 4m |
| Weight | 1.2 Kg |
| dimensions | 1000 x 150 x 40 mm |
| I earn | 4 dBi |
| Working distance | 12 km |
| Operating temperature | -26 ° C ~ + 60 ° C |
| The package contains | |
| Radio station antenna | Yes |
| RG58 cable | 4m |
| PL259 plug | Yes |
| Magnetic base | 125 mm |
